Overview - Rear Brake Caliper, Rear Brakes BOSCH ZOH BIR 38
WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, 2013 Volkswagen Beetle, and 2012 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
- Install complete repair kit when servicing.
- Only use mineral spirits to clean brake parts.
- New brake calipers are filled with brake fluid and are pre-bled.
- Apply thin coat of Assembly Paste G 052 150 A2 to brake cylinders, pistons and seals.
- In case of repair, brake calipers must always be pre-bled before being installed into vehicle (without brake pads). Refer to BRAKE CALIPER, PRE-BLEEDING .

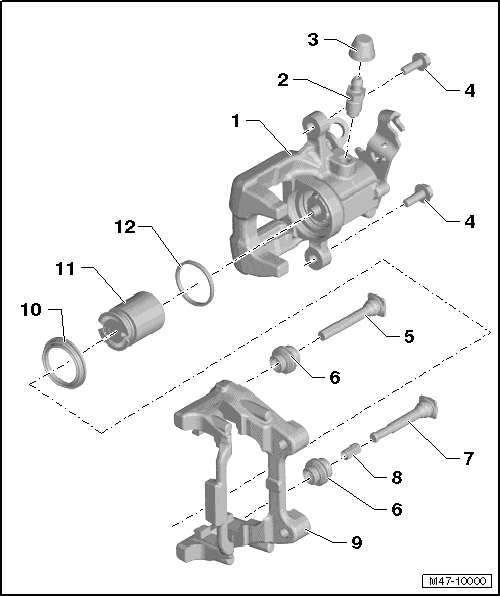

- Brake Caliper with Parking Brake Cable Lever
- Replace brake caliper if leaking at parking brake cable lever
- Bleed the brake caliper after servicing. Refer to BRAKE CALIPER, PRE-BLEEDING .
- Bleeder Valve
- 10 Nm
- Apply a thin coat of Assembly PasteG 052 150 A2 to the threads before screwing in.
- Dust Cap
- Bolt
- 35 Nm
- Self-locking
- Replace
- When loosening and tightening, counter-hold at guide pin
- Upper Guide Pin
- Lubricate before installing the cap
- For the allocation.
- Cap
- Install on brake carrier and guide pin.
- Lower Guide Pin
- With recess
- Lubricate before installing the cap
- For the allocation.
- Guide Grommet
- On the lower guide pin
- Brake Carrier
- Supplied with sufficient grease on guide pins
- If protective caps or guide pins are damaged use repair kit. Use supplied grease packet to lubricate guide pins.
- For the allocation.
- Cap
- Pull onto piston with outer sealing lip
- Removing and installing. Refer to BRAKE CALIPER PISTON, REAR BRAKES ZOH BIR 38 .
- Piston with Automatic Adjustment
- Removing and installing. Refer to BRAKE CALIPER PISTON, REAR BRAKES ZOH BIR 38 .
- Apply thin coat of Assembly PasteG 052 150 A2 to piston before assembling.
- Seal
- Removing and installing. Refer to BRAKE CALIPER PISTON, REAR BRAKES ZOH BIR 38 .
