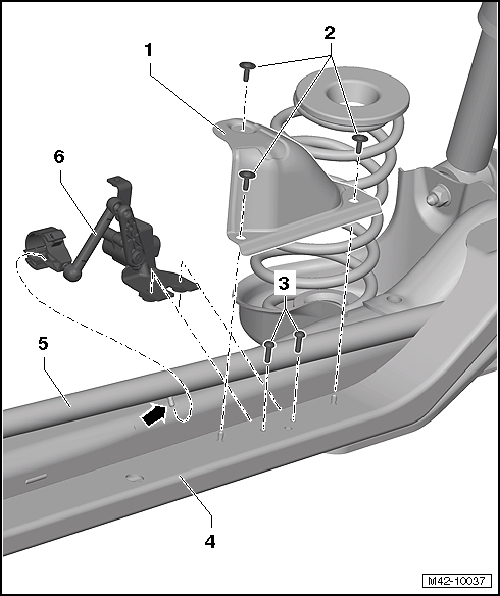

Rear Vehicle Level Sensor Overview, Torsion Beam
WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A replacement Left Rear Level Control System Sensor -G76- comes complete with the coupling rod and the upper and lower retaining plate.
- Heat Shield
- Bolt
- 2.5 Nm
- Bolt
- 5 Nm
- Subframe
- Crossbrace
- Left Rear Level Control System Sensor -G76-
- Complete with components.
- The lever must face upward towards the body.
- Removing and Installing. Refer to Left Rear Level Control System Sensor -G76- /Right Rear Level Control System Sensor -G77-, TORSION BEAM .
- Position it on the tabs -arrow-
- After replacing, perform basic setting of the headlamps.
Headlamp, Checking Basic Setting. Refer to the Vehicle Diagnostic Tester.
