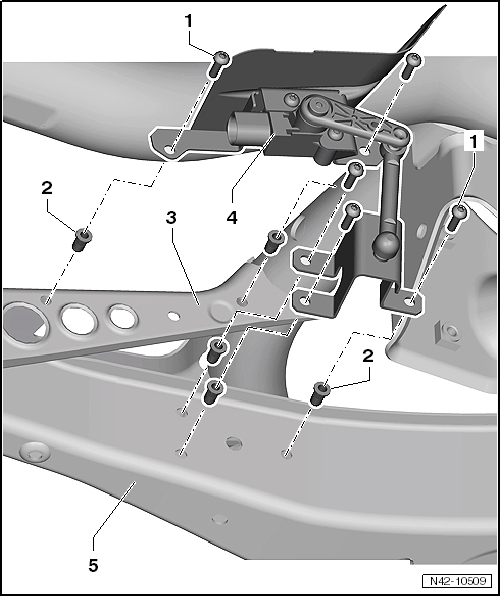

Rear Vehicle Level Sensor Overview, Multi-Link Suspension
WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A replacement Left Rear Level Control System Sensor -G76- comes complete with the coupling rod and the upper and lower retaining plate.
- Bolt
- 5 Nm
- M5 x 20
- Pop Rivet
- Subframe
- Left Rear Level Control System Sensor -G76-
- Complete with components.
- Lever -arrow- must point toward vehicle exterior.
- Removing and Installing. Refer to Left Rear Level Control System Sensor -G76- /Right Rear Level Control System Sensor -G77-, MULTI-LINK SUSPENSION .
- After replacing, perform basic setting of the headlamps.
Headlamp, Checking Basic Setting. Refer to the Vehicle Diagnostic Tester.
- Lower Transverse Link
