Vibration Damper: Removing

WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the ribbed belt. Refer to RIBBED BELT .

-- Remove the cap from the vibration damper.

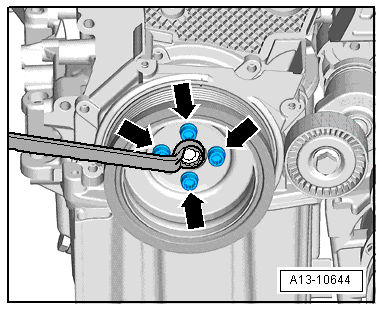

-- Counterhold the crankshaft toothed belt gear bolt with a wrench and loosen the bolts -arrows- on the vibration damper.

Fig 1: Identifying Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts and remove the vibration damper.

Fig 2: Identifying Removal/Installation Vibration Damper/Belt Pulley

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
