Sealing Flange, Belt Pulley Side: Removing

WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the toothed belt. Refer to TOOTHED BELT .

-- Remove the crankshaft toothed belt gear. Use the Counter Support 3415 to keep the toothed belt sprocket from moving.

Fig 1: Counter-Holding Crankshaft Toothed Belt Sprocket With 3415

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Drain the engine oil.

-- Remove the oil pan. Refer to OIL PAN .

-- Remove the front sealing flange, in order to remove bolts -1- through -10-.

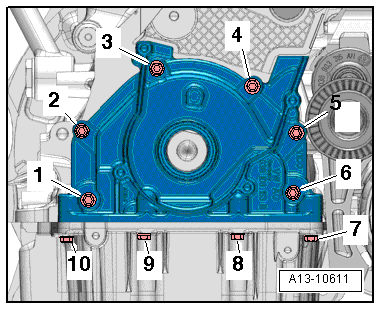

Fig 2: Tightening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the sealing flange. If necessary use a rubber hammer and tap it gently.

-- Remove any sealant residue on the cylinder block using a flat blade scraper.

-- Remove any sealant still on the sealing flange using a rotating plastic brush. Wear protective eyewear.

Fig 3: Identifying Rotating Plastic Brush

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Clean the sealing surfaces.

Sealing surfaces must be free of oil and grease.
