Crankshaft Seal, Replacing, Belt Pulley Side: Installing

WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Note the following:

NOTE: The sealing lip of the sealing ring may not be additionally oiled or greased.

-- Remove any oil residue on the crankshaft pins with a clean cloth.

-- Position the Guide Sleeve T10053/1 on the crankshaft pin.

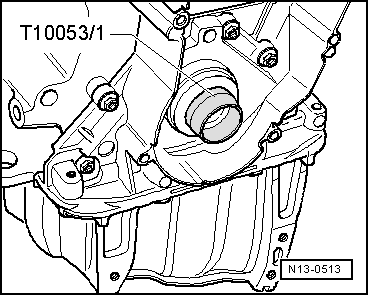

Fig 1: Identifying Guide Sleeve From Assembly Tool T10053 & Crankshaft Journal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Slide sealing ring over guide sleeve onto the crankshaft pin.

-- Press the seal in all the way with the Thrust Sleeve T10053 and the center bolt.

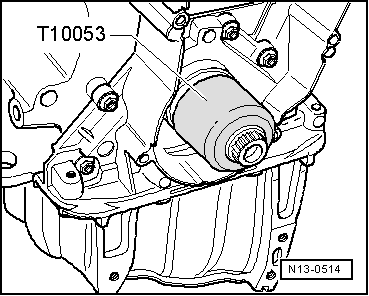

Fig 2: Identifying Press Sleeve T10053

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the crankshaft toothed belt gear. See -item 2-.

-- Install the toothed belt and tension it. Refer to TOOTHED BELT .
