Auxiliary Components Bracket: Removing

WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the high pressure pump. Refer to HIGH PRESSURE FUEL PUMP .

-- Remove the generator. Refer to REMOVAL AND INSTALLATION .

WARNING: Do not open air conditioning refrigerant circuit.

-- Remove the A/C compressor from the auxiliary components bracket and tie it to the lock carrier. Refer to REMOVAL AND INSTALLATION .

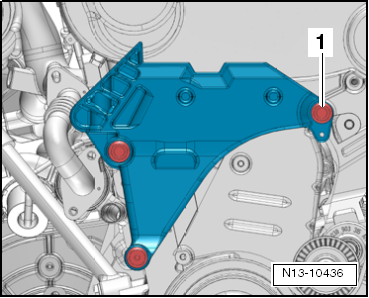

-- Remove the bolt from the engine bracket -1-.

Fig 1: Identifying Engine Bracket Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the idler rollers -1- and -2- and then remove the bolt from the toothed belt cover -arrow-.

Fig 2: Identifying Idler Roller Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

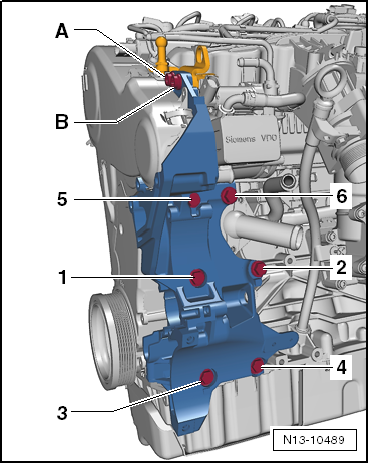

-- Remove the bolts -1- through -6- and the auxiliary components bracket.

Fig 3: Accessory Assembly Bracket - Tightening Specifications And Tightening Sequence
