Ribbed Belt Drive Without A/C Compressor Overview

WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

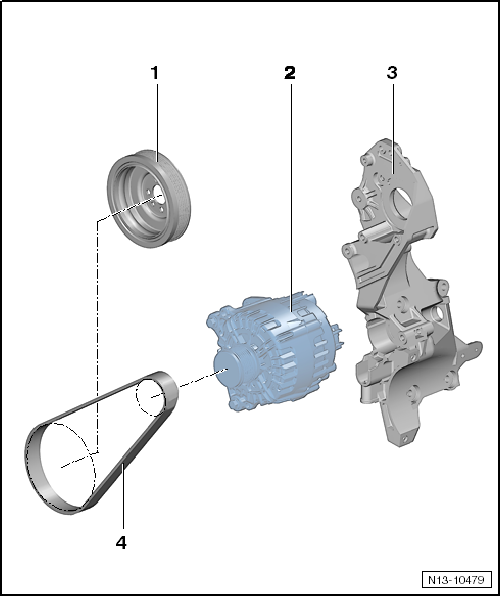

Fig 1: Identifying Ribbed Belt Drive Without A/C Compressor Components Overview
GWWN13-10479Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Vibration Damper
    • The hole inside the vibration damper must be positioned over the protrusion on the crankshaft toothed belt gear.
  2. Generator
  3. Auxiliary Components Bracket
  4. Ribbed Belt
