Dual Mass Flywheel And Sealing Flange
WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

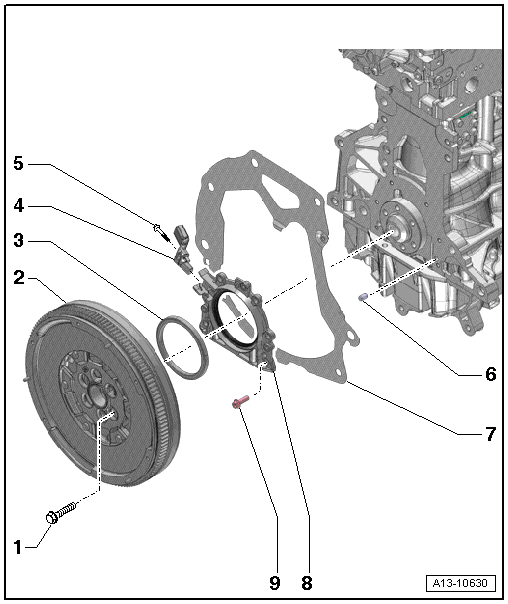

- Bolt
- Replace
- 60 Nm +90°
- Dual Mass Flywheel
- For removing and installing, refer to FLYWHEEL .
- Assembly is only possible in one position because of the offset holes
- Sensor Wheel
- For the Engine Speed Sensor -G28-
- Engine Speed Sensor -G28-
- Removing and installing. Refer to Engine Speed Sensor -G28- .
- 5 Nm
- Alignment Pin
- Quantity: 2
- Intermediate Plate
- Be careful not to damage or bend it when installing Fig 2
- Flywheel Side Sealing Flange
- With seal
- Replacing. Refer to SEALING FLANGE TRANSMISSION SIDE .
- Bolt
- Tightening specification and sequence Fig 3
Fig 2: Identifying Intermediate Plate Is Hooked In At Sealing Flange And Is Pushed Onto Alignment Sleeves
-- Hang the intermediate plate on the sealing flange -upper arrow- and slide it on the alignment sleeve -lower arrows-.
-- Tighten the bolts in two steps in the sequence shown.
| Stage | Bolts | Tightening specification |
|---|---|---|
| 1. | -1- through -6- | Install the bolts all the way in by hand |
| 2. | -1- through -6- | Diagonally in steps at least to 15 Nm |
