Ribbed Belt TENSIONER: Removing

WARNING: This page is about a different car, the 2015 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the ribbed belt, refer to RIBBED BELT, REMOVING AND INSTALLING .

-- Remove the bolts -arrows-, remove the ribbed belt tensioning damper.

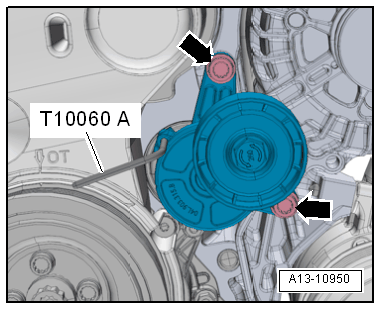

Fig 1: Identifying Ribbed Belt Tensioning Damper With Bolts
GWWA13-10950Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
