Crankshaft Seal, Belt Pulley Side: Installing

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, and 2014 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

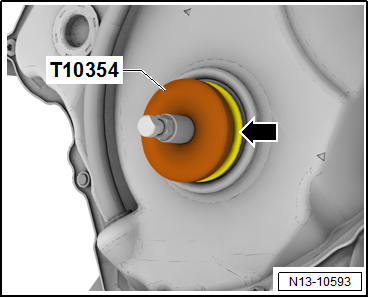

Fig 1: Identifying Seal Installer

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Clean the running and sealing surface.

-- Tighten the shaft seal -arrow- with the Seal Installer - Crankshaft T10354.

-- Install the Press Piece - Timing Chain Cover T10368 and tighten the collar nut -A-.

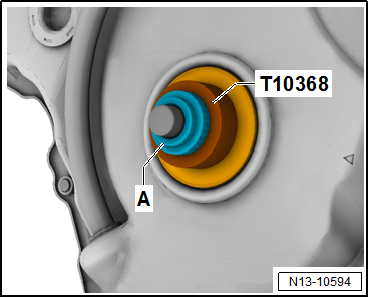

Fig 2: Identifying Timing Chain Cover Press Piece

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Drive in the seal with Seal Installer - Driveshaft Seal T10182 until stop.

-- Install the vibration damper, refer to VIBRATION DAMPER .
