Overview - Right/Left Rear Abs Wheel Speed Sensor -G44- / -G46-, Twist Beam Rear Suspension With Disc Brakes

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

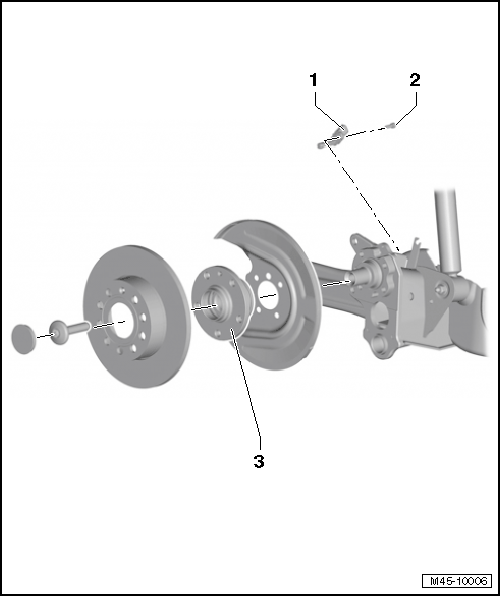

Fig 1: Identifying ABS Assembly Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Rear Speed Sensor --
- Before inserting the sensor, clean inner surface of the hole and coat with Hot Bolt PasteG 052 112 A3.
- Removing and installing. Refer to RIGHT/LEFT REAR ABS WHEEL SPEED SENSOR -G44- / -G46-, TWIST BEAM REAR SUSPENSION WITH DISC BRAKES .
Bolt
- 8 Nm
Wheel Bearing Unit
- The Anti-lock Brake System (ABS) sensor ring is installed in the wheel bearing

Fig 2: Sensor Ring for Anti-lock Brake System (ABS) -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
