Brake Pads, Rear Brakes Bosch ZOH BIR 38: Removing
WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
When removing, mark brake pads that will be used again. Install in the same position, otherwise braking effect will be uneven.
WARNING:
Adjust the brake piston is permitted only with the Brake Caliper Tool T10165.
-- Loosen the wheel bolts.
-- Raise the vehicle.
-- Remove the wheel.

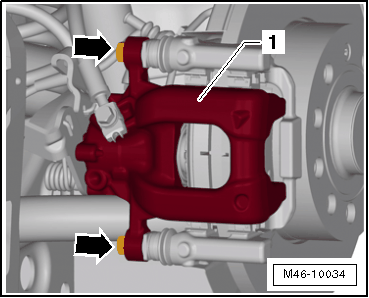

-- Counterhold the guide bolt and remove the bolts -arrows- from the brake caliper -1-.
-- Remove brake caliper and secure with wire so that the weight of the brake caliper does not burden or damage the brake hose.

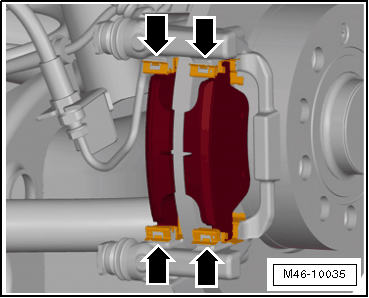

-- Remove the brake pads and brake pad retaining plates -arrows-.
Cleaning:
WARNING:
Do not blow brake system using compressed air, the dust produced is harmful to health!
Use only appropriate solvents for cleaning brake caliper.
