Brake Carrier, Drum Brake: Installing

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Note the following:

-- Clean the contact surfaces for the brake shoes on the support plate and brake carrier.

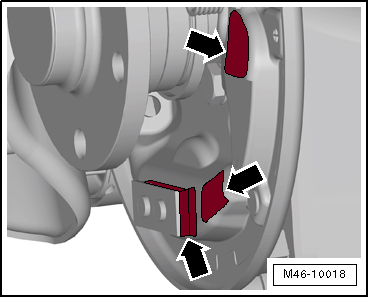

Fig 1: Identifying Lubrication Areas

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lubricate the contact surfaces -arrows- with Grease G 000 650 (6 places on the circumference).

NOTE:

Clean the threaded holes in the axle beam for the bolts -arrows- before installing the brake carrier -1-.

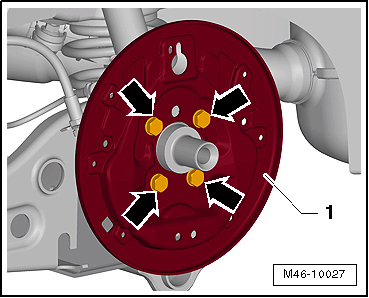

Fig 2: Identifying Brake Carrier & Threaded Connections

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Clean the threaded holes for the self-locking bolts or for the bolts coated with locking fluid. If the holes are not cleaned, then the bolts could break off the next time they are removed.

-- Bleed the brake system. Refer to DESCRIPTION AND OPERATION .

-- Install the wheel and tighten. Refer to REMOVAL AND INSTALLATION .

-- Adjust parking brake. Refer to PARKING BRAKE, ADJUSTING, DRUM BRAKE .
