Brake Cable, Disc Brakes On Twist Beam Rear Suspension: Installing

Fig 1: Identifying Parking Brake Cable, Bracket And Guide Tube

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install in reverse order of removal. Note the following:

-- Slide the brake cable -1- into the guide tube -3- and engage it in the bracket -2-.

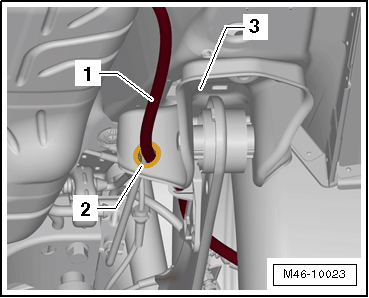

-- Slide the brake cable -1- through the grommet -2- on the bracket located on the rear axle -3-.

Fig 2: Identifying Parking Brake Cable And Bracket On Rear Axle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

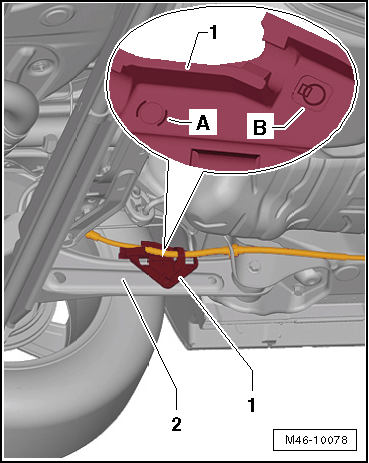

Make sure that for vehicles with disc brakes, the brake cable is inserted into the mount -1- for the guide -B- on the rear axle -2-.

Fig 3: Installing Parking Brake Cable Into Tabs On Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

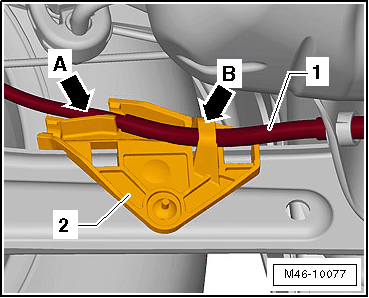

-- Slide the brake cable -1- through the guide -arrow B- for the mount -2-.

Fig 4: Identifying Parking Brake Cable And Retainers

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Carefully clip the brake cable -1- into the tabs -arrow A- on the bracket -2-.

-- Push the brake cable -1- through the bracket -4- on the brake caliper until both tabs -3- engage.

Fig 5: Identifying Parking Brake Cable -1-, Brake Caliper -2-, Tabs -3- And Bracket -4-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the lever -2- located on the brake caliper in direction of -arrow- and engage the brake cable -1-.

The brake cable must be installed without tension between the bracket on the brake caliper and the bracket on the rear axle.

-- Install the brake cable -2- in the compensator bracket.

Fig 6: Identifying Parking Brake Cable And Adjusting Nut

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pretension the brake cable using the adjustment nut -1-.

-- Install wheel and tighten.

-- Adjust parking brake. Refer to PARKING BRAKE, ADJUSTING, DISC BRAKES .

Tightening Specification

• Refer to OVERVIEW - PARKING BRAKE
• Refer to REMOVAL AND INSTALLATION .
• Refer to REMOVAL AND INSTALLATION .
• Refer to REMOVAL AND INSTALLATION .
