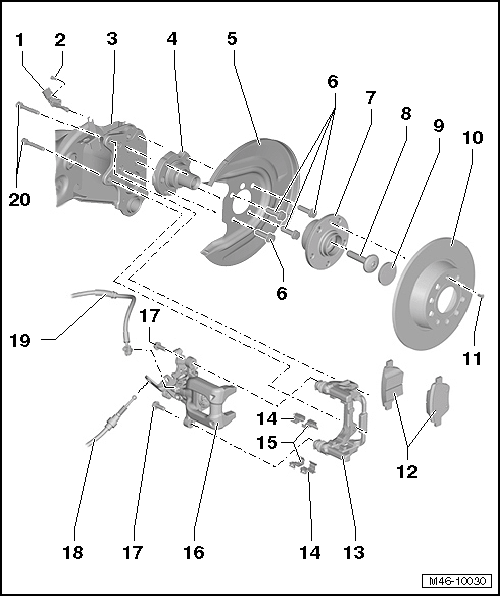

Overview - Twist Beam Rear Suspension, Rear Brakes Bosch ZOH BIR 38
WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
After replacing brake pads, depress brake pedal firmly several times with vehicle stationary so that the brake pads are properly seated in their normal operating position.
Use Brake Charger/Bleeder Unit VAS 5234 to extract brake fluid from brake fluid reservoir.
Install the Brake Pedal Actuator VAG 1869/2 to relieve pressure before removing a brake caliper or disconnecting a brake hose.
- Rear Speed Sensor
- Before inserting the sensor, clean inner surface of the hole and coat with Hot Bolt Paste G 052 112 A3.
- Removing and installing. Refer to RIGHT/LEFT REAR ABS WHEEL SPEED SENSOR -G44- / -G46-, TWIST BEAM REAR SUSPENSION WITH DISC BRAKES .
- Bolt
- 8 Nm
- Axle Beam
- Removing and Installing. Refer to REMOVAL AND INSTALLATION .
- Axle Stub
- Removing and installing. Refer to DESCRIPTION AND OPERATION .
- Brake Cover Plate
- Removing and installing. Refer to REAR BRAKE SHIELD .
- Bolt
- 30 Nm + 90° additional turn
- Always replace if removed
- Quantity: 4
- Wheel Bearing Unit
- Removing and installing. Refer to DESCRIPTION AND OPERATION .
- Bolt
- Always replace if removed
- Removing and installing. Refer to DESCRIPTION AND OPERATION .
- Cover
- Removing and installing. Refer to DESCRIPTION AND OPERATION .
- Brake Rotor
- Diameter 272 mm
- Thickness: 10 mm
- Wear limit: 8 mm
- Removing and installing. Refer to BRAKE ROTOR .
- Do not use excessive force to separate the brake rotor from the wheel hub. If necessary, use rust penetrant, otherwise the brake rotors could be damaged.
- Bolt
- 8 Nm
- For securing the brake rotor
- Brake Pads
- Thickness: 12 mm without backing plate
- Wear limit: 2 mm without backing plate
- Check the thickness.
- Always replace on both axles
- Removing and installing. Refer to BRAKE PADS, REAR BRAKES BOSCH ZOH BIR 38 .
- Brake Carrier with Different Guide Pins and Protective Cap
- Removing and installing. Refer to BRAKE CARRIER, DISC BRAKE .
- Supplied with sufficient grease on guide pins
- If protective caps or guide pins are damaged use repair kit. Use supplied grease packet to lubricate guide pins.
- Brake Pad Retaining Plate
- Always replace when pads are replaced
- The brake pad retaining plates are different, they can only be installed diagonally to each other.
- Brake Pad Retaining Plate
- Always replace when pads are replaced
- The brake pad retaining plates are different, they can only be installed diagonally to each other.
- Brake Caliper
- Do not remove the brake hose when changing the brake pads.
- Removing and installing. Refer to BRAKE CALIPER, REAR BRAKES BOSCH ZOH BIR 38 .
- Servicing. Refer to REAR BRAKE CALIPER PISTON
- Adjust the parking brake after performing service work or replacing it. Refer to PARKING BRAKE, ADJUSTING, DISC BRAKES .
- Bolt
- 35 Nm
- Self-locking
- Always replace if removed
- Quantity: 2
- Brake Cable
- Both tabs must be engaged in the brake caliper bracket
- Adjusting the parking brake. Refer to PARKING BRAKE, ADJUSTING, DISC BRAKES .
- Brake Hose
- With banjo bolt and seals
- 35 Nm
- Bolt
- 90 Nm + 90° additional turn
- Quantity: 2
- Always replace if removed
