Overview - Brake Cylinder

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

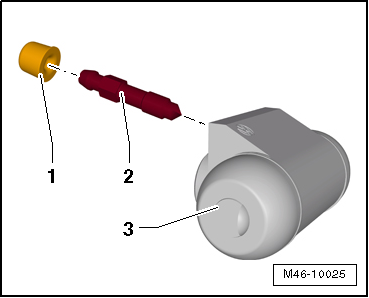

Fig 1: Identifying Dust Cap
GWWM46-10025Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Dust cap; push onto bleed valve
  2. Bleeder Valve 8 Nm; Apply a thin coat of Assembly Paste G 052 150 A2 to the threads before screwing in.
  3. Wheel brake cylinder
NOTE:

Replace the brake cylinder if there are leaks or damage.

Checking for Leaks. Refer to BRAKE CYLINDER, CHECKING FOR LEAKS .
