Axle Beam: CROSSBRACE: Removing

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Raise the vehicle.

Secure Vehicle to Lifting Platform

Fig 1: Identifying Rear Axle, Lifting To Curb Weight Position

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Tensioning Strap T10038

NOTE:

The vehicle could fall off the hoist if it is not secured.

-- Remove the plug from the longitudinal member and install the Tensioning Strap T10038.

-- Remove coil spring. Refer to SPRING, TORSION BEAM .

Vehicles with Left Rear Level Control System Sensor -G76-

-- Release -arrow A- and open the door -1-.

Fig 2: Identifying Tensioning Strap Door And Crossbrace

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Remove the Left Rear Level Control System Sensor -G76- from the crossbrace -2- -arrow B-.

Continuation for All Vehicles

-- Move the Engine/Gearbox Jack VAG 1383A under the axle beam.

-- Push the axle beam up until the crossbrace -2- is horizontal.

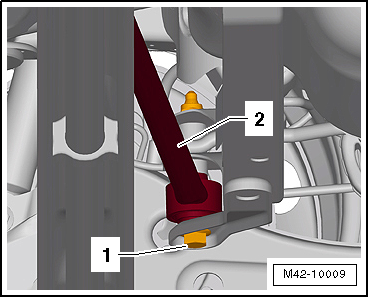

Fig 3: Identifying Axle Beam & Threaded Connection

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the threaded connection -1-.

-- Remove the threaded connection -1- and the crossbrace -2-.

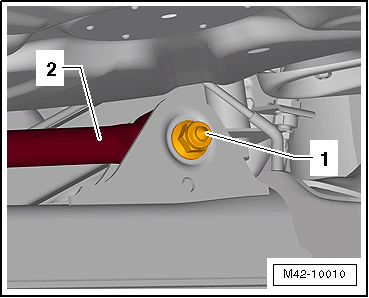

Fig 4: Identifying Crossbrace & Threaded Connection

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
