Axle Beam: CROSSBRACE: Installing

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Note the following:

Vehicles with Left Rear Level Control System Sensor -G76-

-- The tab -arrow A- for the crossbrace -1- must face the tab -arrow B- for the subframe -2-.

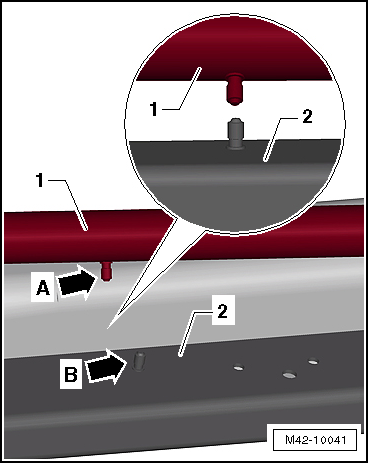

Fig 1: Identifying Crossbrace Tab And Subframe Tab

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Position the Left Rear Level Control System Sensor -G76- onto the crossbrace -2- so that it is seated in the tab -arrow B-.

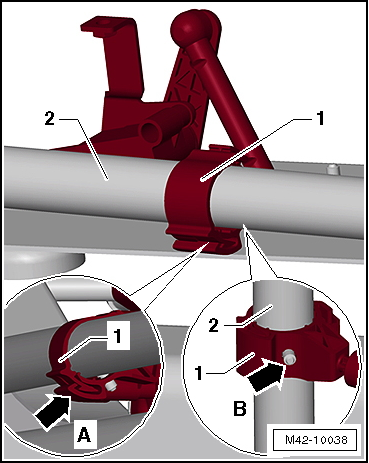

Fig 2: Identifying Tensioning Strap Door And Crossbrace

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- The door -1- must audibly engage with the underside -arrow A-.

Continuation for All Vehicles

-- Install the coil spring. Refer to SPRING, TORSION BEAM .
