CROSSBRACE Bonded Rubber Bushing, Replacing: Removing

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Mount the special tools as illustrated and remove the bonded rubber bushing.

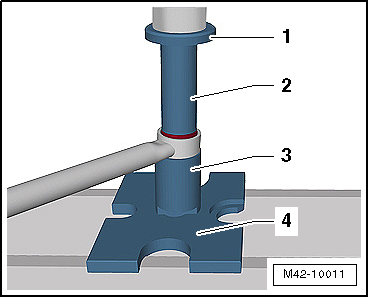

Fig 1: Identifying Special Tools (1 Of 2)
GWWM42-10011Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Press Piece - Multiple Use VW412
  2. Press Piece - 37mm VW416B
  3. Carrier Bearing Installation Tool 3350
  4. Press Plate VW401
