CROSSBRACE Bonded Rubber Bushing, Replacing: Installing

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Mount the special tools and bonded rubber bushing as illustrated.

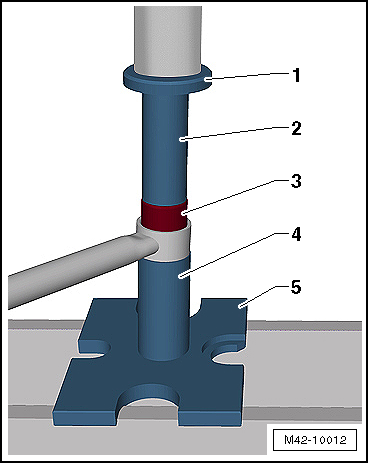

Fig 1: Identifying Special Tools (2 Of 2)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the bonded rubber bushing on the stop.

Press Piece - Multiple Use VW412
Press Piece - 37mm VW416B
Bonded Rubber Bushing
Press Tube 2040
Press Plate VW401

-- Install the crossbrace. Refer to CROSSBRACE .
