Axle Beam Bonded Rubber Bushing, Replacing: Removing

-- Release parking brake.

Vehicles without Center Armrest

-- Remove the mat from the storage compartment.

-- Remove the door -1- from the center console.

Fig 1: Identifying Center Console

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Vehicles with Center Armrest

-- Remove the center armrest. Refer to Removal and Installation .

Continuation for All Vehicles

-- Loosen the adjusting nut -1- until it is possible to disengage the parking brake cable -2- from the compensator bracket.

Fig 2: Identifying Parking Brake Cable And Adjusting Nut

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the wheel bolts.

-- Raise the vehicle.

-- Remove the wheels.

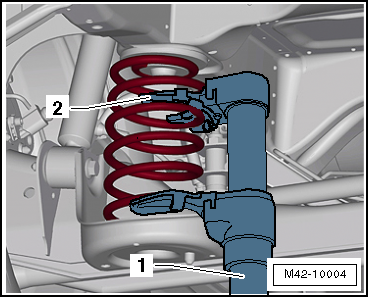

-- Install the Spring Compressor VAG 1752/1 -1-.

Fig 3: Identifying Spring

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Spring Compressor VAG 1752/1
2. Spring Holder VAG 1752/3A

-- Tension the coil spring -2- and remove it.

-- Disengage the parking brake cable -1- from the bracket -2- on both sides of the vehicle.

Fig 4: Identifying Parking Brake Cable, Bracket And Guide Tube

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull the parking brake cable -1- out of the guide tube -3-.

-- Remove the parking brake cable -1- bracket -2- on the rear axle -3-.

Fig 5: Identifying Parking Brake Cable And Bracket On Rear Axle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Move the Engine/Gearbox Jack VAG 1383A under the axle beam.

-- Secure the rear axle with a strap or something similar when lowering or removing it.

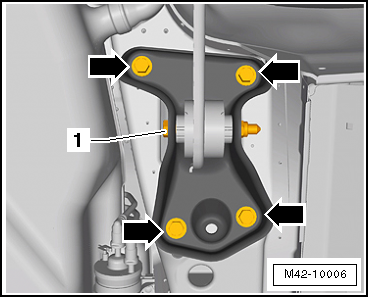

-- Mark the position of the bolts -arrows- on the bracket on the right side of the vehicle.

Fig 6: Locating Right Axle Beam Bracket Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the threaded connection -1-.

-- Remove bolts -arrows-.

-- Lower the axle beam and remove the bolt -1- and the bracket.

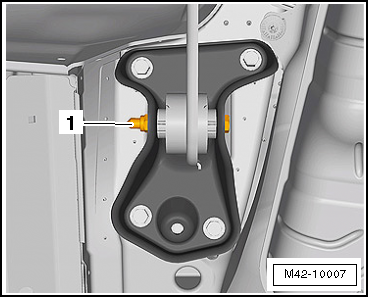

-- Remove the bolt -1- from the axle beam on the left side of the vehicle.

Fig 7: Locating Left Axle Beam Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lower rear axle using Engine/Gearbox Jack VAG 1383A.

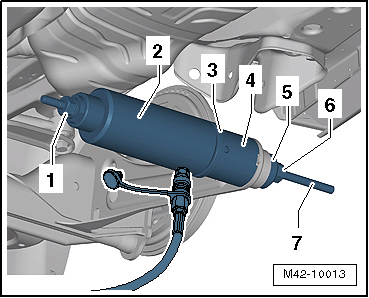

-- Mount the special tools as illustrated.

Fig 8: Mounting Special Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Nut T10254/4
2. Hydraulic Press VAS6178 with Pressure HeadT10205/13
3. Thrust PlateT10205/1
4. TubeT10230/9
5. Thrust PieceT10230/10
6. Nut T10254/4
7. SpindleT10254/5

-- Activate the pump and remove the bonded rubber bushing.
