Axle Beam Bonded Rubber Bushing, Replacing: Installing

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Installation position of bonded rubber mounting inside the axle beam.

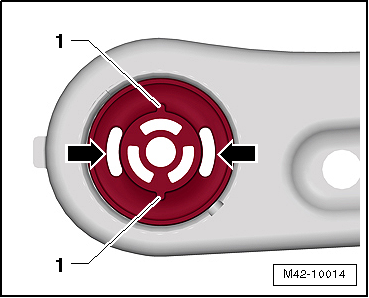

Fig 1: Identifying Bonded Rubber Bushing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The tabs -1- on the bonded rubber bushing must vertically point up or down.
The openings -arrows- must be aligned longitudinally with the vehicle.

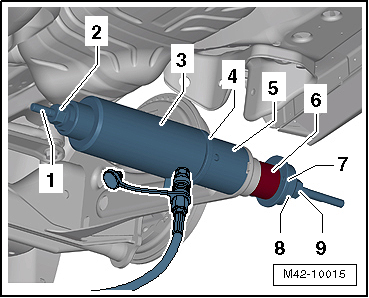

-- Mount the bonded rubber bushing and the special tools on the rear axle.

Fig 2: Mounting Special Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Spindle T10254/5
Nut T10254/4
Hydraulic Press VAS6178 with Pressure Head T10205/13
Thrust PlateT10205/1
Tube T10230/9
Bonded Rubber Bushing
Thrust Piece T10230/12
Thrust Piece T10230/10
Nut T10254/4

-- Install the bonded rubber bushing.

-- Check the installed position of the bonded rubber bushing.

Fig 3: Identifying Bonded Rubber Bushing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The tabs -1- on the bonded rubber bushing must vertically point up or down.
The openings -arrows- must be aligned longitudinally with the vehicle.

-- Tighten the rear axle in its curb weight position. Refer to WHEEL BEARING IN CURB WEIGHT, REAR AXLE WITH COIL SPRING .

Install in reverse order of removal.

-- Install wheels and tighten. Refer to WHEEL BOLT TIGHTENING SPECIFICATIONS .
