Rear Axle, Torsion Beam Overview

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Welding and straightening work on supporting or wheel carrying components of the suspension is not permitted.

Always replace self-locking nuts.

Always replace corroded bolts/nuts.

Bonded rubber bushings can only be turned to a limited extent. Therefore, the threaded connections of the components with bonded rubber bushings should only be tightened when the wheel bearing housing is lifted (curb weight position). Refer to WHEEL BEARING IN CURB WEIGHT, REAR AXLE WITH COIL SPRING .

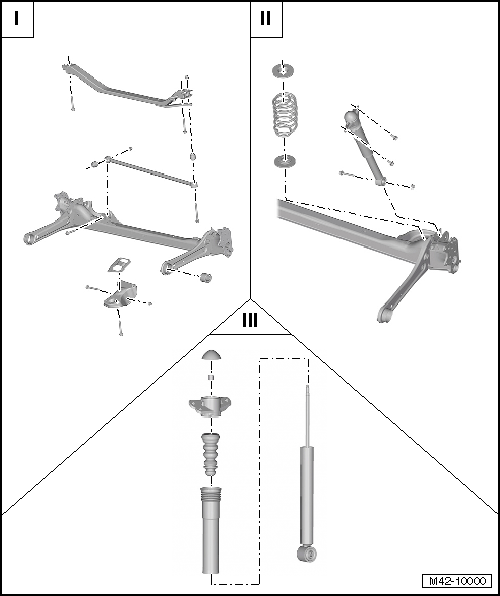

Fig 1: Identifying Rear Suspension Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

I - Refer to AXLE BEAM OVERVIEW
II - Refer to SUSPENSION STRUT, SHOCK ABSORBER AND SPRING OVERVIEW, TORSION BEAM
III - Refer to SHOCK ABSORBER, SERVICING

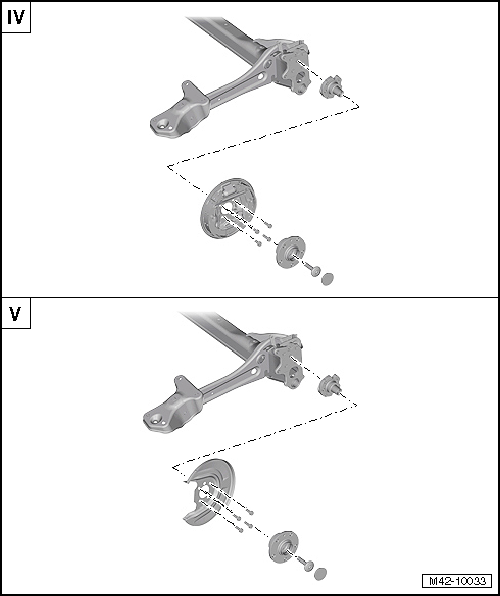

Fig 2: Identifying Wheel Bearing And Brake Assembly

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

IV - Refer to WHEEL BEARING, DRUM BRAKE AND TORSION BEAM OVERVIEW
V - Refer to WHEEL BEARING, DISC BRAKE AND TORSION BEAM OVERVIEW
