Special Tools

WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Hand Vacuum Pump VAS 6213

Fig 1: Hand Vacuum Pump VAS 6213
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Body Saw V.A.G 1523 A or

Fig 2: Body Repair Saw (V.A.G 1523A)
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Chain Pipe Cutter VAS 6254

Fig 3: Chain Pipe Cutter VAS 6254
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque Wrench V.A.G 1331 (not illustrated)
Transportation Lock T10404

Fig 4: Identifying Transportation Lock T10404
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Tool Set 17 mm T10395

Fig 5: Identifying Diesel Engine Tool Set - 17 mm T10395A
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Oxygen Sensor Wrench 3337

Fig 6: 3337 Oxygen Sensor Ring Spanner
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

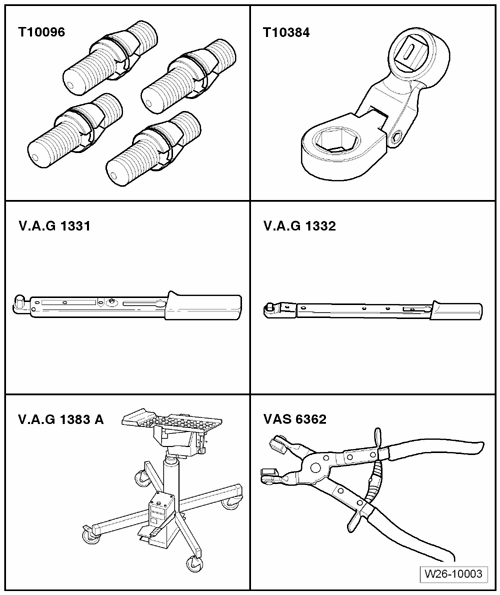

Fig 7: Identifying Special Service Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Locating Pins T10096
Wrench SW13 T10384
Torque Wrench 5-50 Nm V.A.G 1331
Torque Wrench 40-200 Nm V.A.G 1332
Engine-Transmission Jack V.A.G 1383 A
Hose Clip Pliers VAS 6362

Fig 8: Identifying 3094, V.A.G. 1331, VAS 6208 And VAS 6362

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Hose Clamps up to 25 mm Diameter 3094
Torque Wrench 5-50 Nm V.A.G 1331
Drip Tray VAS 6208
Hose Clip Pliers VAS 6362
14 mm socket T10401 (not illustrated)
