Exhaust Gas Temperature Sensor 3G495, TIGHTENING

WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Socket from Tool Set T10395/6
Torque Wrench 5-50 Nm V.A.G 1331

Procedure

-- Install Exhaust Gas Temperature Sensor 3 -G495- hand-tight.

WARNING:

The Torque Wrench V.A.G 1331 must be set to 29 Nm using the extension for extension for Torque Wrench T10395/6 with Socket V.A.G 1331 in order to attain the specified tightening specification of 45 Nm.

-- Tighten Exhaust Gas Temperature Sensor -G495- with Torque Wrench V.A.G 1331 and Socket T10395/7.

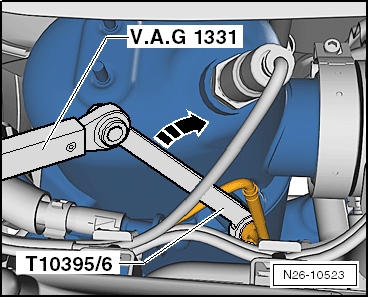

Fig 1: Identifying Torque Wrench V.A.G 1331

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
