EGR Cooler: Removing

WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Crankcase Ventilation Hose And Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the particulate filter. Refer to PARTICULATE FILTER WITH NOX ABSORPTION CATALYTIC CONVERTER .

-- Press the release buttons and remove the crankcase ventilation hose -1-.

-- Expose the vacuum hoses -arrows-.

-- Remove air guide pipe from air filter housing by loosening hose clamps -3-.

-- Remove bolt -2- and tilt the air guide pipe with the intake tube backward and remove from the turbocharger.

-- Remove the bolts -arrows-.

Fig 2: Identifying Pulsation Damper, Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the hose clamps -1- and remove the pulsation damper -2-.

-- Remove the bolts and the exhaust gas recirculation pipes -A-.

Fig 3: Identifying Right Connecting Tube

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

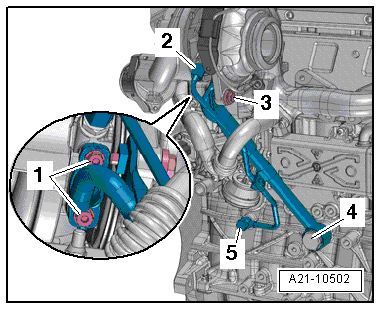

-- Remove the bolts -1- and -3-, the union nut -2- and the banjo bolts -4- and -5-, then remove the turbocharger support and oil supply line.

Fig 4: Identifying Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Place the Drip Tray for VAS 6100VAS 6208 under the engine.

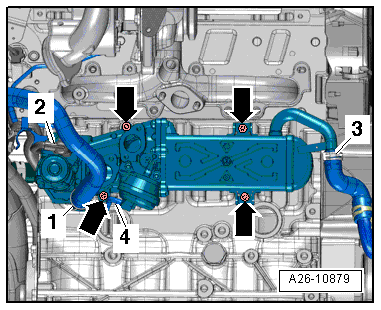

Fig 5: Identifying EGR Cooler With Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Clamp the coolant hoses -1- and -3- with hose clamps up to 25 mm diameter 3094 and remove them from EGR cooler.

-- Disconnect the connector -2-.

-- Remove the vacuum hose -4- from the vacuum adjusting element and free it up.

-- Remove the screws -arrows- and remove the EGR cooler.
