EGR Cooler, Checking Switch-Over
WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Hand Vacuum Pump VAS 6213
Procedure
-- Remove the heat shield boot.

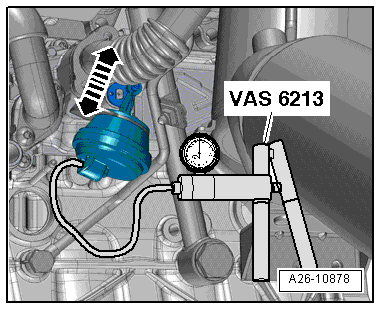

-- Remove the vacuum hose from the vacuum diaphragm and connect the Hand Vacuum Pump VAS 6213 in its place.
-- Run the hand vacuum pump to generate a vacuum.
- The change over linkage on the EGR cooler moves -arrows-.
If the linkage does not move or only moves backward:
- The vacuum diaphragm is faulty.
- The change-over flap for the EGR moves with difficulty.
NOTE:
Install the heat shield in the same position.
