Special Tools

WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Cooling System Tester V.A.G 1274 B

Fig 1: Cooling System Tester V.A.G 1274 B
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Adapter V.A.G 1274/8

Fig 2: Adapter VAG 1274/8
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Adapter V.A.G 1274/9

Fig 3: Adapter V.A.G 1274/9
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Hose Clamps up to 40 mm Diameter 3093

Fig 4: Hose Clamps 3093
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Pry Lever 80 - 200

Fig 5: 80-200 Pry Lever
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Hose Clip Pliers VAS 6362

Fig 6: Clamp Pliers VAS 6362
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Hose Clip Pliers VAS 6340

Fig 7: Hose Clamp Pliers VAS 6340
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fig 8: Identifying Special Tools And Workshop Equipment

GWWW19-10029

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Refractometer T10007
Drip Tray for VAS 6100 VAS 6208
Hose Clip Pliers VAS 6340
Cooling System Charge Unit VAS 6096
Adapter V.A.G 1274/8

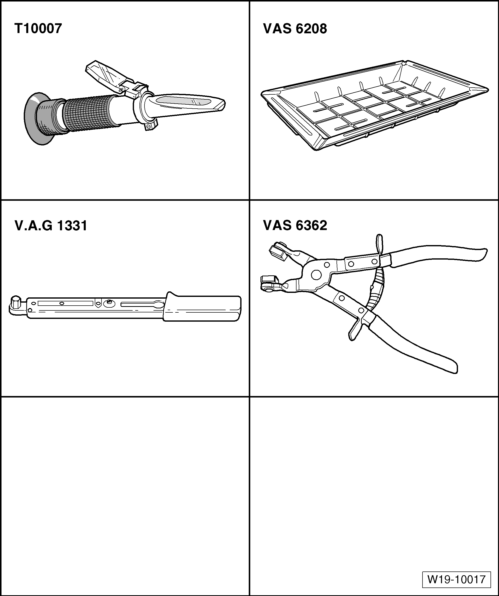

Fig 9: Identifying Special Tools And Workshop Equipment

GWWW19-10017

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Refractometer T10007
Drip Tray for VAS 6100 VAS 6208
Torque Wrench 5-50 Nm V.A.G 1331
Hose Clip Pliers VAS 6362

Fig 10: Special Tools And Workshop Equipment

GWWW19-10020

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Refractometer T10007
Torque wrench 5-50 Nm V.A.G 1331
Hose Clip Pliers VAS 6340

Fig 11: Identifying Special Toolset: Oil Draining And Filling

GWWW19-10028

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

T Bar and Socket 10 mm 3185
Refractometer T10007 A
Hex Ball Socket T10058
Torque Wrench 5-50 Nm V.A.G 1331/
Drip Tray for VAS 6100 VAS 6208
Hose Clip Pliers VAS 6340

Fig 12: Identifying Special Tools And Workshop Equipment

GWWW19-10030

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Refractometer T10007 A
Hose Clamps up to 25 mm Diameter 3094
Cooling System Tester V.A.G 1274 B
Adapter V.A.G 1274/8
Hose Clip Pliers VAS 6340
Drip Tray for VAS 6100 VAS 6208
