Coolant Pipe, Front Upper: Removing

WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover. Refer to ENGINE COVER .

-- Remove the air filter housing. Refer to AIR FILTER HOUSING .

-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .

-- Remove the bolt -2-.

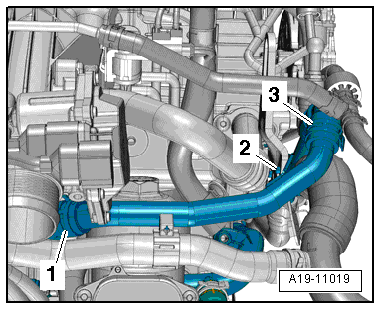

Fig 1: Identifying Bolt And Clamps

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the clamps -1- and -3- and disconnect the coolant hoses.

-- Remove the front upper coolant pipe.
