Coolant, Draining And Filling: Draining

WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Refractometer T10007
Drip Tray for VAS 6100 VAS 6208
Hose Clip Pliers VAS 6340
Cooling System Charge Unit VAS 6096
Adapter V.A.G 1274/8

WARNING: Hot steam may escape when opening the reservoir. Cover cap with a cloth and open carefully.

-- Open the coolant reservoir cap.

-- Remove the noise insulation. Refer to Description and Operation .

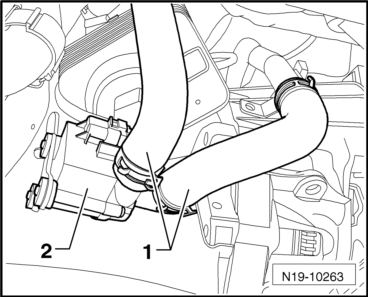

-- Remove coolant hose -1- on the Engine Coolant Circulation Pump 2 -V178- -2-.

Fig 1: Identifying Coolant Hoses And Engine Coolant Circulation Pump 2 -V178-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the clips -arrow-, and remove coolant hose from the quick release couplings on the radiator for the air charge coolant circuit.

Fig 2: Identifying Coolant Hose

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the coolant hose clips -arrow-, and remove the coolant hose from the quick release couplings for the radiator.

Fig 3: Identifying Lower Coolant Hose

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- In addition, to drain the coolant from the engine, disconnect the coolant hose at the engine oil cooler -arrow-.

Fig 4: Identifying Coolant Hose Clip At Oil Cooler

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
