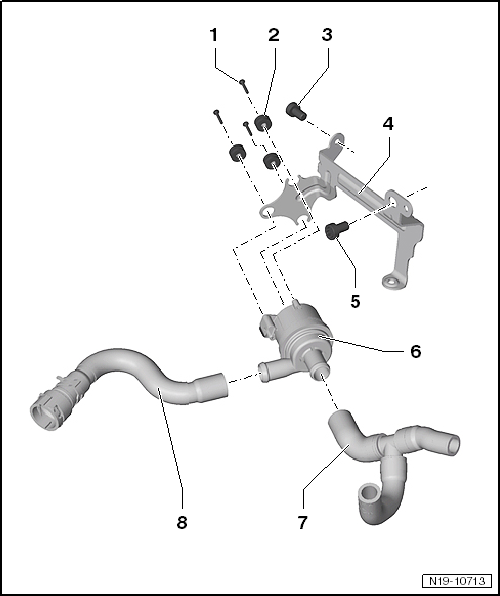

Engine Coolant Circulation Pump 2 -V178- OVERVIEW
WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 1.5 Nm
- Quantity: 3
- Rubber Grommet with Sleeve
- Quantity: 3
- Bolt
- M6 x 12
- 8 Nm
- Bracket
- Bolt
- 40 Nm
- Engine Coolant Circulation Pump 2 -V178-
- For removing and installing, refer to Coolant Pump 2 -V178- .
- Coolant Hose
- Connection diagram for coolant hoses, refer to COOLANT HOSE CONNECTION DIAGRAM
- Coolant Hose
- Connection diagram for coolant hoses, refer to COOLANT HOSE CONNECTION DIAGRAM
