Coolant System Component Location, Front, Without Engine Pre-Warmer

WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Coolant Hose Connection Diagram. Refer to COOLANT HOSE CONNECTION DIAGRAM .

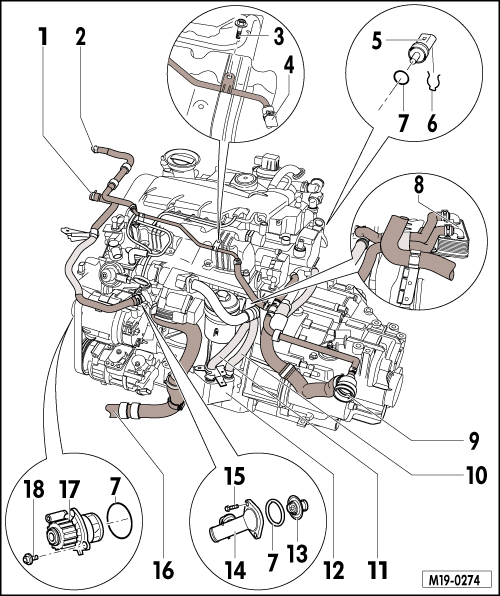

Fig 1: Identifying Cooling System Component Overviews, Engine Side Without Engine Pre-Warmer

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Lower Coolant Reservoir Hose
Upper Coolant Reservoir Hose
Bolt
- 10 Nm
Ventilation Pipe
Engine Coolant Temperature Sensor -G62-
Clamp
O-Ring
- Replace after removing
Transmission Fluid Cooler
- Only on vehicles with the dual clutch transmission
To the Upper Radiator
Engine Oil Cooler Coolant Supply Hose
- On vehicles without a transmission fluid cooler
  Transmission oil cooler coolant return line
- On vehicles with a transmission oil cooler
Engine Oil Cooler Coolant Return Hose
Engine Oil Cooler
Thermostat/4/2-Way Valve with Thermostat
- Checking: warm the thermostat in water
- Opens at: approximately 87°C
- Stops at: approximately 102°C
- Opening travel: minimum 7 mm
- Coolant Thermostat, Removing and Installing. Refer to 4/2-WAY VALVE WITH COOLANT THERMOSTAT .
- 4/2-Way Valve with Thermostat, Removing and Installing, refer to 4/2-WAY VALVE WITH COOLANT THERMOSTAT
Connecting Piece
Bolt
- 15 Nm
Hose to the Lower Radiator
Coolant Pump
Bolt
- 40 Nm
