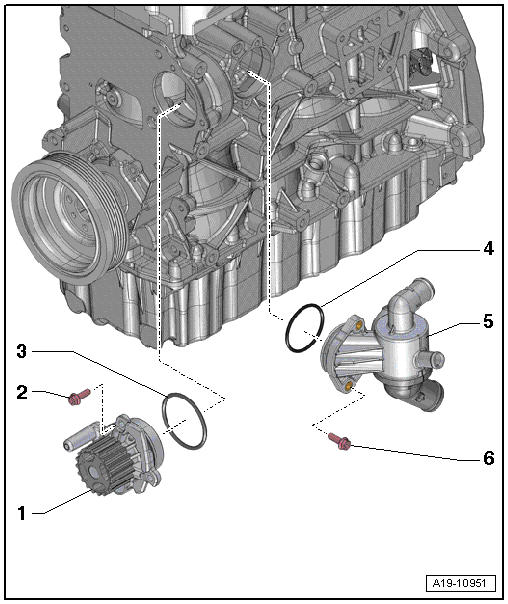

Coolant Pump/Thermostat Overview
WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
- Coolant Pump
- Removing and installing. Refer to COOLANT PUMP .
- Bolt
- Quantity: 3
- 15 Nm
- O-Ring
- Replace
- O-Ring
- Replace
- 4/2-Way Valve with Thermostat
- Check the 4/2-way valve and coolant thermostat. Refer to Vehicle Diagnostic Tester "Function and Component Selection"
- The thermostat is located inside the 4/2-way valve and cannot be replaced separately.
- Removing and installing. Refer to 4/2-WAY VALVE WITH COOLANT THERMOSTAT .
- Bolt
- Quantity: 2
- 15 Nm
