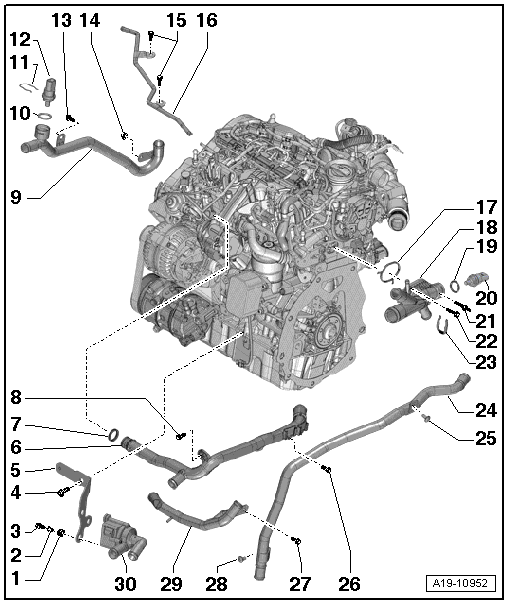

Coolant Pipes Overview
WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
- Grommet
- Not available individually
- Sleeve
- Not available individually
- 2.7 Nm
- 40 Nm
- Bracket
- For engine coolant circulation pump 2 -V178-
- Front Coolant Pipe
- Removing and installing. Refer to COOLANT PIPE .
- O-Ring
- Replace
- 8 Nm
- Right Coolant Pipe
- O-Ring
- Replace
- Clamp
- Engine Coolant Temperature Sensor on Radiator Outlet -G83-
- Removing and installing. Refer to Engine Coolant Temperature Sensor on Radiator Outlet -G83- .
- 9 Nm
- 9 Nm
- 9 Nm
- Coolant Line
- Seal
- Replace
- Connecting Piece
- For the coolant hoses
- O-Ring
- Replace
- Engine Coolant Temperature Sensor -G62-
- Double Bolt, 9 Nm
- 9 Nm
- Clamp
- Left Coolant Pipe
- For removing and installing, refer to LEFT COOLANT PIPE .
- 9 Nm
- 9 Nm
- 9 Nm
- 13 Nm
- Front Upper Coolant Pipe
- Removing and installing. Refer to COOLANT PIPE, FRONT UPPER .
- Engine Coolant Circulation Pump 2 -V178-CAUTION: It is necessary to bleed the engine coolant system with VAS 6069 after replacing the coolant pump. Refer to COOLANT, DRAINING AND FILLING . Air pockets can cause damage (caused by overheating) to the EGR cooler.
