Overview - Front Wheel Housing Liner
NOTE:
The wheel housing liner may differ slightly depending on the model.

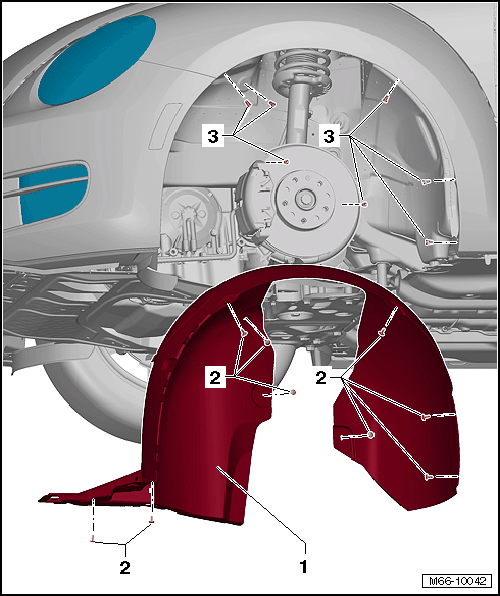

The illustration shows the left side. The right side is identical.
- Wheel Housing Liner
- PP/EPDM material
- Clipped into the wheel housing with the front bumper cover
- Removing and Installing. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- Quantity: 9
- Expanding Nut
- Replace if damaged
- Quantity: 7
