Camshaft Adjuster, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Audi S8, 2015 Audi A8 Quattro, 2014 Audi S8, 2014 Audi A8 Quattro, and 2013 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

Cylinder Bank 1 (Right):

-- Remove the engine cover, refer to ENGINE COVER, REMOVING AND INSTALLING .

WARNING:

Fire hazards and risk of damage for a faulty engine cover.

The engine cover must be always be installed before the hood is closed.
The engine may neither be started nor driven without an engine cover.

Vehicles with the Engine Codes CEUA/CTGA:

Fig 1: Removing Camshaft Adjustment Valve 1 -N205 - / Exhaust Camshaft Adjustment Valve 1 -N318-, Removing And Installing, Cylinder Bank 1 (Right)

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the clamps -arrows- and remove the air guide pipe.

Vehicles with the Engine Codes CGTA/CTFA:

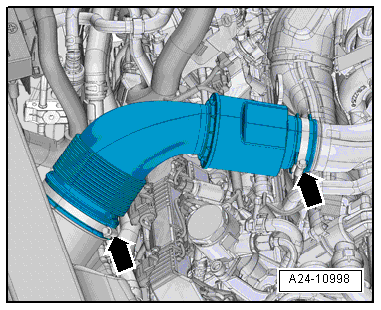

Fig 2: Removing Air Guide Pipe (Engine Codes CGTA/CTFA)

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the clamps -arrows- and remove the right air guide pipe.

Continued for Both Sides:

Fig 3: Locating Connector And Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2-.

-- Remove the bolt -1- and then remove the camshaft adjuster.
