Overview - Subframe Mount

WARNING: This page is about a different car, the 2015 Audi S8, 2014 Audi S8, 2014 Audi A8 Quattro, 2013 Audi S8, and 2013 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.

Engine Mount

Fig 1: Engine Mount Overview
GWWA10-11597Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 6 Nm
  2. Subframe Mount Sensor and Subframe Mount Actuator
    • Right: Subframe Mount Sensor 1 -G748- and Subframe Mount Actuator 1 -N513-
    • Left: Subframe Mount Sensor 2 -G749- and Subframe Mount Actuator 2 -N514-
    • After installing perform the basic setting of the subframe mount adjustment, refer to Vehicle Diagnostic Tester.
  3. Engine Mount
    • Removing and installing, refer to ENGINE MOUNT, REMOVING AND INSTALLING .
    • After installing perform the basic setting of the subframe mount adjustment, refer to Vehicle Diagnostic Tester
  4. Bolt
    • 20 Nm
  5. Engine Mount Bracket
  6. Bolt
    • 40 Nm
  7. Engine Support
  8. Bolt
    • 90 Nm +90°
    • Replacing
  9. Subframe
  10. Bolt
    • 55 Nm

Subframe Mount Control Module -J931-

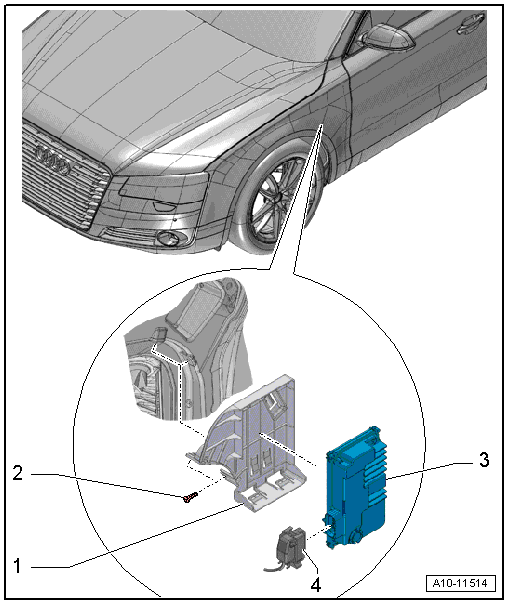

Fig 2: Identifying Subframe Mount Control Module -J931-
GWWA10-11514Courtesy of AUDI OF AMERICA, LLC
  1. Bracket
  2. Bolt
    • 9 Nm
  3. Subframe Mount Control Module -J931-
  4. Connector

Transmission Mount

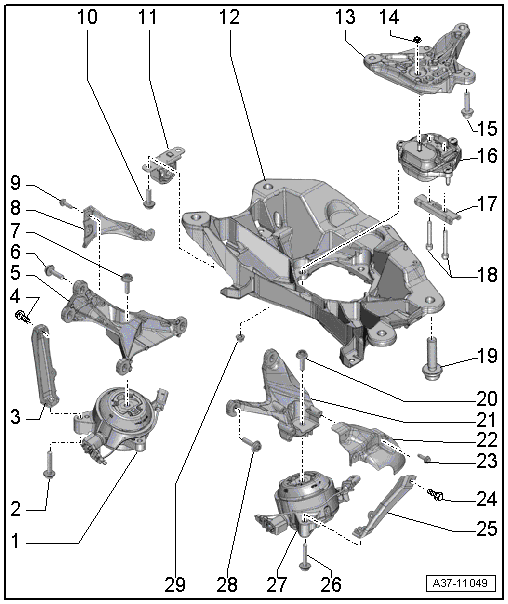

Fig 3: Identifying Subframe Mount Overview (8-/12-Cylinder)
GWWA37-11049Courtesy of AUDI OF AMERICA, LLC
  1. Right Transmission Mount
  2. Bolt
  3. Brace
  4. Bolt
  5. Right Transmission Support
  6. Bolt
  7. Bolt
  8. Heat Shield
  9. Bolt
  10. Not Installed
  11. Not Installed
  12. Tunnel Crossmember
  13. Rear Transmission Support
  14. Nut
    • Only remove if the transmission mount must be separated from the transmission support
    • Tightening specification, refer to OVERVIEW - SUBFRAME MOUNT  .
  15. Bolt
  16. Rear Transmission Mount
  17. Lower Stop
    • For the rear transmission mount
  18. Bolts
    • Only remove if the transmission mount must be separated from the transmission support
    • Tightening specification, refer to OVERVIEW - SUBFRAME MOUNT  .
  19. Bolt
  20. Bolt
  21. Left Transmission Support
  22. Heat shield
  23. Bolt
  24. Bolt
  25. Brace
  26. Bolt
  27. Left Transmission Mount
  28. Bolt
  29. Nut
