Reverse Gear Wheel Stop Ring And Spring

Special tools and workshop equipment required

• Thrust Plate VW 401
• Thrust Disc VW 412
• Carrier Bearing Installation Tool 3350

Removing

-- Remove the stop ring -A- from the reverse gear -C- using a drift.

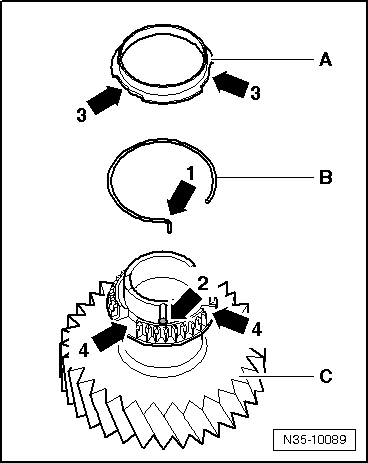

Fig 1: Identifying Reverse Gear Wheel Components

Courtesy of AUDI OF AMERICA, LLC

When doing this, secure the spring -B- from jumping away.

Installing

-- First, install the spring -B- in the gear -C-.

• The bent end of spring -arrow 1- must be hooked into hole -arrow 2- of the gear.

-- Then install the stop ring -A- on the gear.

• The recesses in the stop rings -arrows 3- and in the gear - 4- must align with each other.

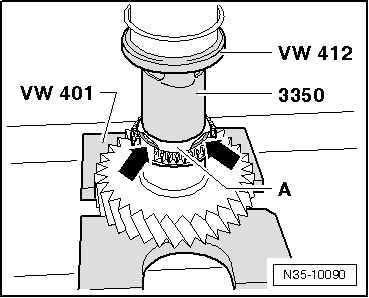

-- Carefully install the stop ring -A- onto the gear. Hold the spring -arrows- compressed when doing this.

Fig 2: Installing Gear Wheel Stop Ring

Courtesy of AUDI OF AMERICA, LLC

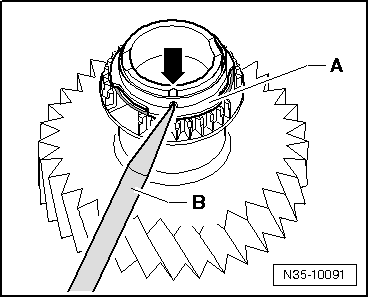

-- Then secure the stop ring -A- on the gear with a blunt center punch -B-.

Fig 3: Securing Gear Wheel Stop Ring

Courtesy of AUDI OF AMERICA, LLC

-- When doing this, place the center punch in the groove -arrow- in the gear.
