Transmission, Transporting

WARNING: This page is about a different car, the 2014 Volkswagen Tiguan, 2013 Volkswagen Tiguan, and 2012 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Shackle10-222 A/12
Additional Hooks10-222 A/2

To transport the manual transmission and to set up the transmission support3282, the shackle10-222 A/12 can be used with the additional hooks10-222 A/2 and the shop crane.

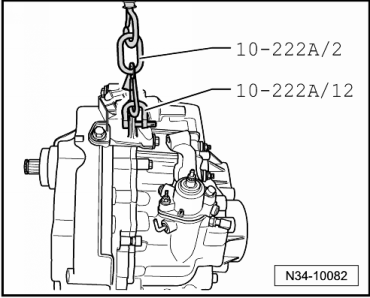

Fig 1: Transport Manual Transmission And To Set Up 3282 Shop Crane

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the shackle10-222 A/12 to the transmission housing.

-- Lift the transmission using the additional hooks10-222 A/2 and shop crane.
