Transmission, Assembly: Notes

• Press the new grooved ball bearing -item 16- in INPUT SHAFT OVERVIEW onto the input shaft.

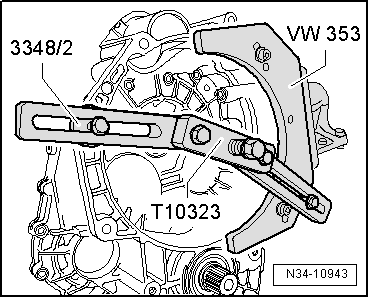

-- Install the support bridgeT10323 as illustrated.

Fig 1: Mount T10323 As Illustrated

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the input shaft together and the 5th and 6th gear selector shaft with selector rod into the clutch housing.

Fig 2: Installing Input Shaft Together And Selector Rod For 5Th And 6Th Gears Into Clutch Housing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

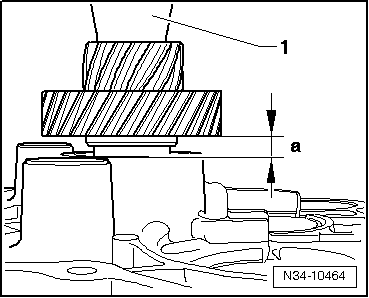

Turn the spindle on the support bridgeT10323 and lift the input shaft -1- to dimension -a-.

• -a- = 15 mm

-- Install the left stub shaft to the differential -A- ; this way the differential can be raised in the following work steps.

Fig 3: Attach Left Stub Shaft To Differential

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the differential.

A second technician is needed to perform the following work.

-- Lift the differential in the -direction of the arrow- (2nd technician).

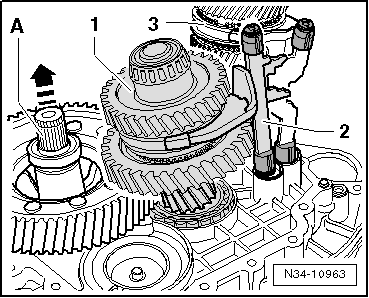

-- First place the 1st and 2nd gear input shaft -1- with the selector shaft with selector rod -2- in the bearing seat and then move it toward the input shaft -3-.

-- Lift the 1st and 2nd gear output shaft on the gear -arrow A- and swing it toward the input shaft (2nd technician).

Fig 4: Lift 1St And 2Nd Gear Output Shaft On Gear Wheel And Swing It Toward Input Shaft

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

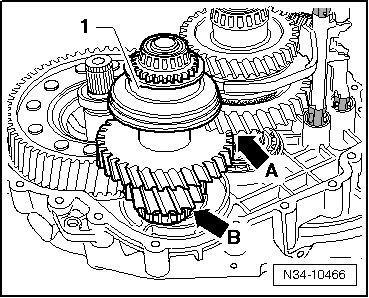

-- Guide the reverse gear output shaft -1- under the splines on the gear -arrow A- and place it in the bearing seat -arrow B-.

Turn the spindle on the support bridgeT10323 and lower the input shaft approximately 10 mm.

Fig 5: Installation Position, 3rd and 4th Gear Selector Rod

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The shorter brace -arrow- points to the clutch housing.

-- Install the 3rd and 4th gear output shaft -2- together with the 3rd and 4th gear selector shift with selector rod -1-.

-- Install the left stub shaft -3- to the differential.

-- Lower the input shaft just enough -A- by turning the spindle on the support bridgeT10323 so that is remains slightly tensioned (lifted approximately 1 m).

Fig 6: Lower Input Shaft

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

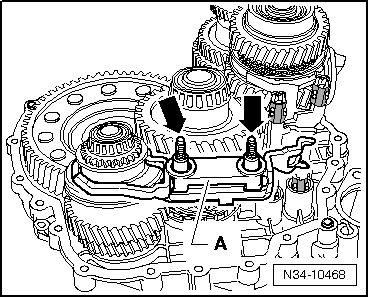

-- Place the reverse gear selector fork -A- into the reverse gear output shaft slide locking collar.

Fig 7: Place Reverse Gear Switching Rockers Into Reverse Gear Output Shaft Slide Locking Collar

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
