Transmission Housing

WARNING: This page is about a different car, the 2014 Volkswagen Tiguan, 2013 Volkswagen Tiguan, and 2012 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Holding FixtureVW 801
Locking Pin30-505
Thrust Pad3124
Subframe Support Assem. Device3290
DriftT10168
Torque Wrench (5-50 Nm)V.A.G 1331
Kukko Extractor 18.5-23.5 mm21/3
Threaded Adapter from Kukko Support22/1
Kukko Support22/2
Kukko Extractor 14.5-18.5 mm21/2
Sealing PasteAMV 188 200 03

Fig 1: Identifying Selector Shaft Bushing, Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Use the threaded adapter -arrow- from the Kukko support22/1.

-- Hold the spindle on the subframe support assem. device3290 and turn the nut -B-.

A - Extractor 14.5-18.5 mm, for example 21/2.

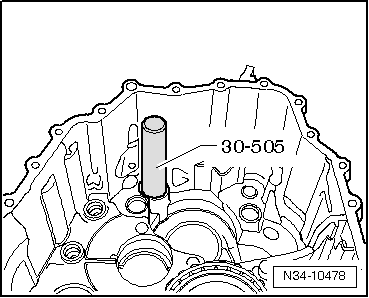

Fig 2: Driving Bearing Bushing For Selector Shaft In To Tool Stop

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

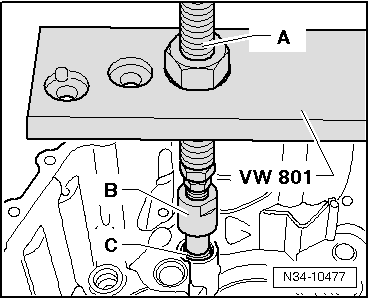

Fig 3: Remove the Gearshift Rod Bearing Bushing -C-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

A - Support, for example 22/2.

B - Extractor 18.5-23.5 mm, for example 21/3

Fig 4: Installing Selector Rod Bushing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
