Transmission Components Overview: Notes

WARNING: This page is about a different car, the 2014 Volkswagen Tiguan, 2013 Volkswagen Tiguan, and 2012 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.

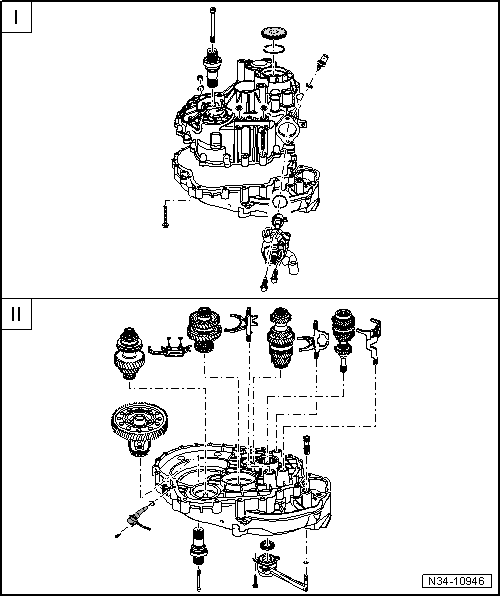

Fig 1: Identifying Transmission Assembly Overview
GWWN34-10946Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. TRANSMISSION HOUSING AND SHIFT UNIT
  2. INPUT SHAFT, OUTPUT SHAFTS, DIFFERENTIAL, AND SHIFT RODS
