Test Sequence:

-- Follow all safety precautions. Refer to SAFETY PRECAUTIONS .

-- Follow the guidelines for clean working conditions. Refer to FUEL SYSTEM GUIDELINES FOR CLEAN WORKING CONDITIONS .

-- Connect the Vehicle Diagnostic Tester -1- as follows:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Connect the diagnostic cable connector -2- to the diagnostic connection inside the driver footwell.

-- Switch the ignition on.

-- Select the fuel pump output diagnostic test mode in OBD.

The fuel pump must run.

-- Switch off the ignition.

If the Fuel Pump Does Not Start:

-- Remove the bench seat. Refer to REAR SEATS .

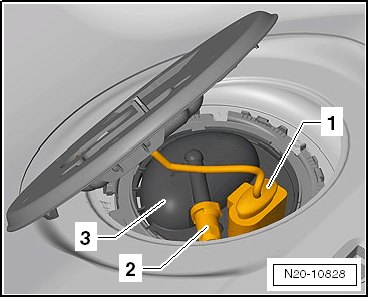

-- Unclip the cover -1- at the tabs in direction of -arrows- using the :3409  .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull on the connector -1- without pressing the release to make sure the locking mechanism is secure. Repeat the fuel pump function test if the connector was not connected correctly.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the connector -1-.

-- Check the contacts on the connector and on the fuel delivery unit for damage.

-- Attach the :VAS5565  to the connector and to the fuel delivery unit.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Connect the analog/digital multimeter to the wires -1 and 5- in the :VAS5565  .

-- Re-initiate the output diagnostic test mode and measure the voltage on the fuel pump.

• Specified value: approximately 2 Volts less than battery voltage.

If the Specified Value Is Not Obtained:

-- Locate and repair the open circuit according to the wiring diagram. Refer to apprpriate Wiring Diagram.

If the Specified Value Is Obtained:

-- Remove the fuel delivery unit. Refer to FUEL DELIVERY UNIT/FUEL LEVEL SENSOR, REMOVING AND INSTALLING .

-- Check if the wiring between the flange and fuel pump is connected.

-- Inspect the contacts for damage.

If No Open Circuits Are Found:

-- If the fuel pump is faulty, replace the fuel delivery unit. Refer to FUEL DELIVERY UNIT/FUEL LEVEL SENSOR, REMOVING AND INSTALLING .
