Leak Detection Pump, Removing And Installing: Removing

-- Remove the right rear wheel housing liner. Refer to WHEEL HOUSING LINER .

-- Remove the right rear underbody trim panel, if equipped. Refer to UNDERBODY TRIM PANEL .

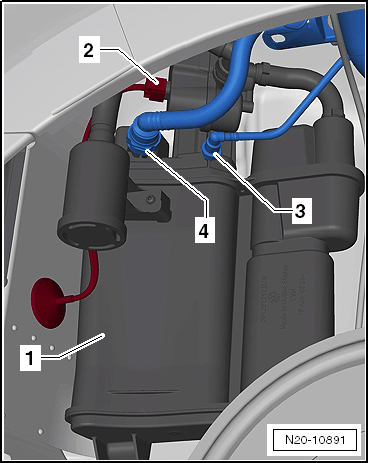

-- Disconnect the connector -2- by pressing the release.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the line -3 and 4-. Refer to CONNECTOR COUPLINGS, DISCONNECTING .

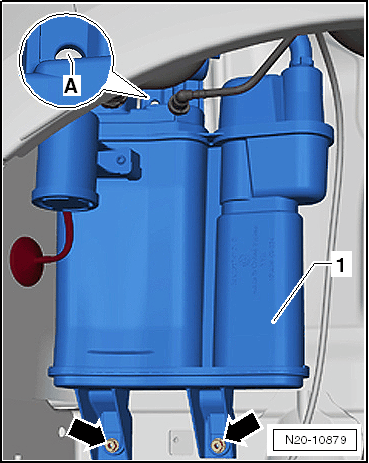

-- Loosen both bolts -arrows- and remove the EVAP canister -2- downward from the guide bracket.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

If the EVAP canister gets caught while still in the guide, insert a suitable tool through the hole -A- and gently push the catch toward the luggage compartment.

-- Set the EVAP canister down and disconnect both lines from the pump.

-- Loosen the three bolts and remove the pump.
