Overview - Muffler: Notes

WARNING: This page is about a different car, the 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

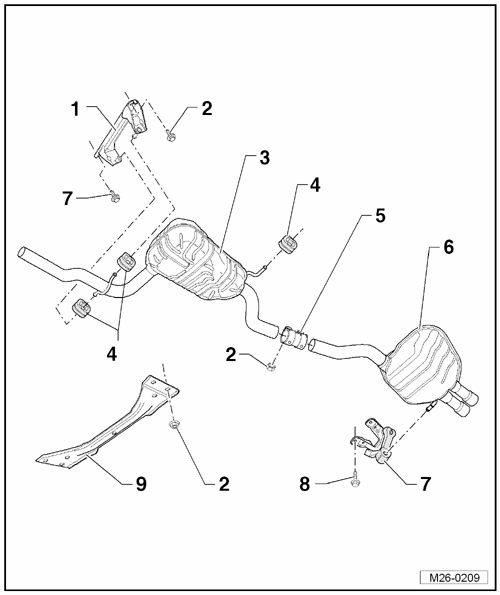

Fig 1: Exploded View Of Muffler Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Suspended Mount
Bolt
- 25 Nm
Front Muffler
- Factory-installed with rear muffler as one unit, to be replaced individually in the event of repairs.
- Exhaust system, separating. Refer to EXHAUST PIPES/MUFFLERS, SEPARATING .
- Exhaust system, installing without tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
Retaining Loop
- Replace if damaged
Repair Clamp
- For individual replacement of front and rear mufflers
- Installed position. Refer to figure in Installation Position Of Double Clamp
- Tighten bolts evenly
Rear Muffler
- Factory-installed with front muffler as one unit, to be replaced individually in the event of repairs.
- Exhaust system, separating. Refer to EXHAUST PIPES/MUFFLERS, SEPARATING .
- Exhaust system, installing without tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
Suspended Mount
- Replace if damaged
Bolt
- 25 Nm
Crossbrace
