Overview - Emissions Control: Notes
WARNING: This page is about a different car, the 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

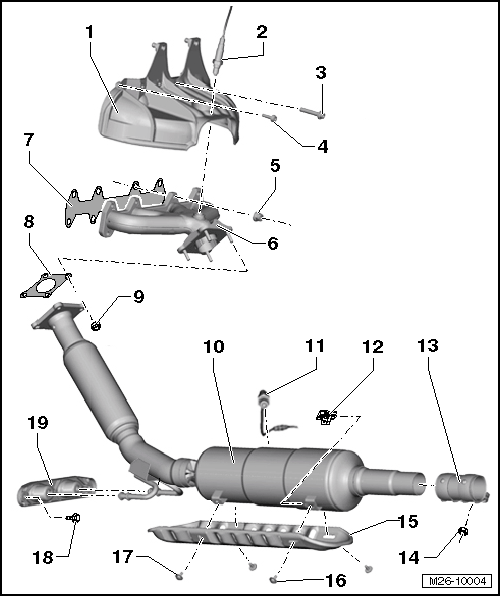

- Warm Air Collector Plate
- Heated Oxygen Sensor -G39-
- 50 Nm
- Removing and installing with Ring Wrench 7-Piece Set :3337
- Coat the threads on the new heated oxygen sensors with assembly paste.
- When reusing a heated oxygen sensor, only use Hot Bolt Paste to grease the thread. Do not let paste get onto slits on the heated oxygen sensor body
- If sealing ring is leaking cut open and replace.
- Installed location of the connector: inside the engine compartment on the bulkhead, refer to -item 14) FUEL INJECTION SYSTEM - Connector for Heated Oxygen Sensor -G39- -.
- Bolt
- 23 Nm
- Bolt
- 10 Nm
- Nut
- 23 Nm
- Replace after removing
- Exhaust Manifold
- Coat stud bolts with Hot Bolt Paste
- Gasket
- Replace after removing
- Gasket
- Replace after removing
- Nut
- 23 Nm
- Replace after removing
- Front Exhaust Pipe
- With catalytic converter
- Protect from shocks and impact stress
- With decoupling element
- Do not bend the decoupling element more than 10° - otherwise it may get damaged
- Exhaust system, installing without tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
- Installed location of the connector: inside the engine compartment on the bulkhead, refer to -item 14) FUEL INJECTION SYSTEM - Connector for Heated Oxygen Sensor -G39- -.
- Oxygen Sensor after Three Way Catalytic Converter -G130-
- 55 Nm
- Removing and installing with Ring Wrench 7-Piece Set :3337
- Coat the threads on the new heated oxygen sensors with assembly paste.
- When reusing a heated oxygen sensor, only use Hot Bolt Paste to grease the thread. Do not let paste get onto slits on the heated oxygen sensor body
- If sealing ring is leaking cut open and replace.
- Spring Nut
- Insert from front
- Front Clamping Sleeve
- Before tightening, ensure exhaust system is tension-free. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
- Installed position. Refer to figure in Installation Position Of Double Clamp .
- Tighten bolts evenly
- Nut
- 23 Nm
- Heat Shield
- For catalytic converter
- Bolt
- 5 Nm
- Bolt
- 10 Nm
- Bolt
- 23 Nm
- Suspended Mount
- Replace if damaged

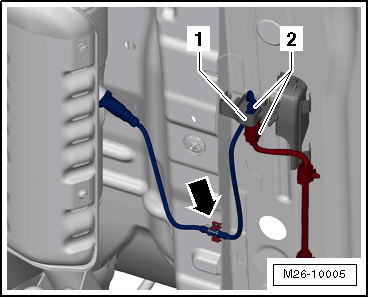

The connector is located to the right, on the vehicle floor under the cover.
- Mount
- Connector for Oxygen Sensor after Three Way Catalytic Converter -G130-, brown
The Oxygen Sensor after Three Way Catalytic Converter -G130- cable is held in place with a clip -arrow-.
