Timing Chain, Checking: Procedure

-- Remove the noise insulation. Refer to NOISE INSULATION .

-- Remove the right front wheel housing liner. Refer to WHEEL HOUSING LINER .

-- Remove the bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

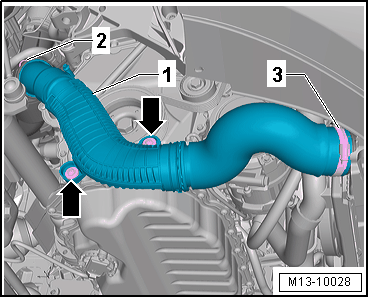

-- Remove the air duct pipe by lifting the clip -2- and opening the screw-type clamp -3-.

-- Remove the plug -arrow-. The plugs must be replaced.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the vibration damper in direction of engine rotation until the chain tensioner piston is extended the maximum distance in the direction of -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Count the visible piston splines.

• If six or fewer threads are visible: adjust the chain length by selecting 01 - Chain Length Adaptation Diagnosis  in Guided Functions  on the vehicle diagnostic tester. Then erase the DTC memory.
• If seven or more threads are visible: replace the camshaft timing chain. Refer to CAMSHAFT, REMOVING AND INSTALLING .
