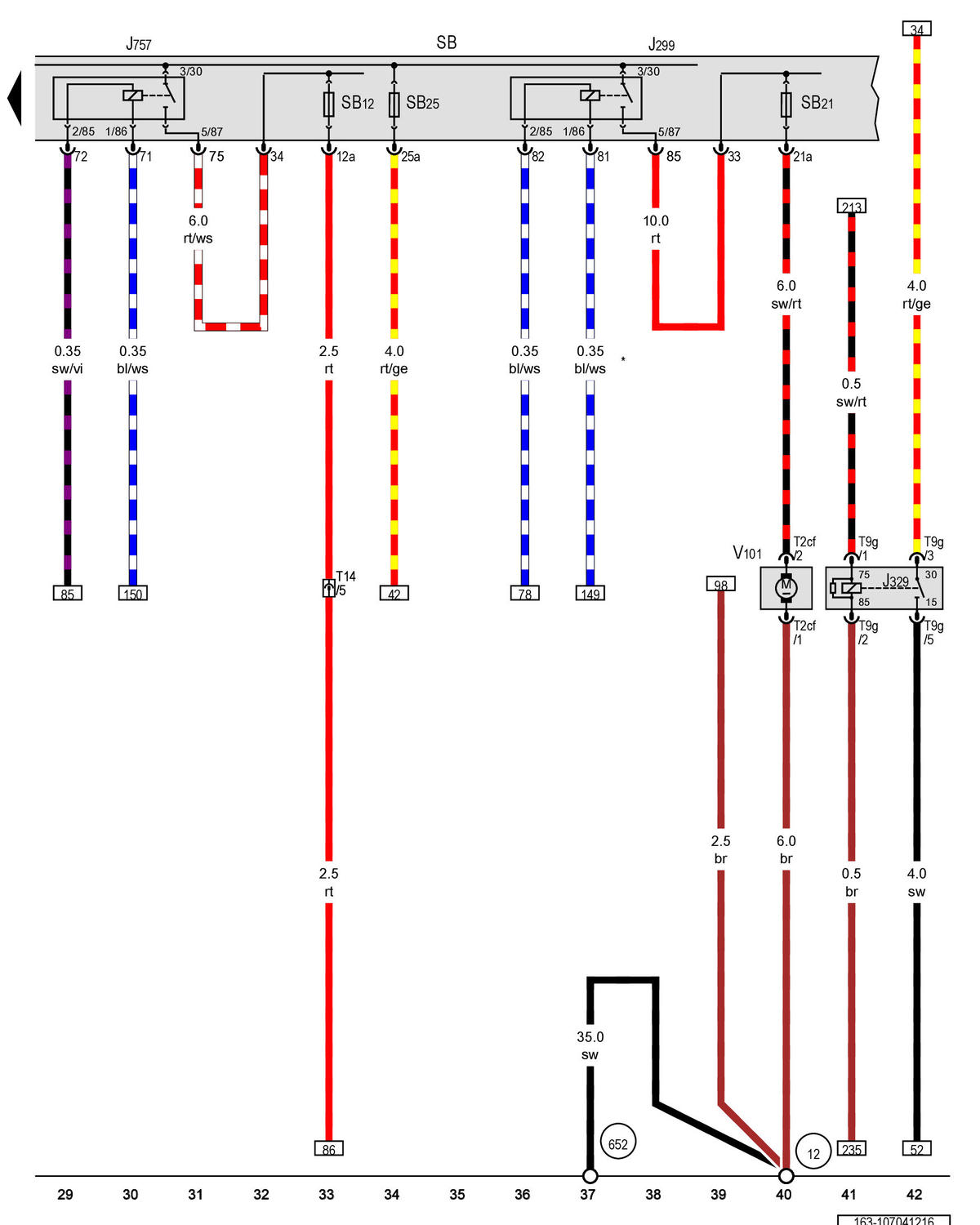

Secondary Air Injection Pump Relay, Terminal 15 Power Supply Relay, Engine Component Power Supply Relay, Fuse Panel B, Secondary Air Injection Pump Motor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J299

Secondary air injection pump relay

J329

Terminal 15 power supply relay

J757

Engine component power supply relay

Fuse panel B

SB12

Fuse 12 (on fuse panel B)

SB21

Fuse 21 (on fuse panel B)

SB25

Fuse 25 (on fuse panel B)

T2cf

2-pin connector

T9g

9-pin connector

T14

14-pin connector

V101

Secondary air injection pump motor

Ground connection in engine compartment, left

Transmission/engine ground connection

*From December 2016
