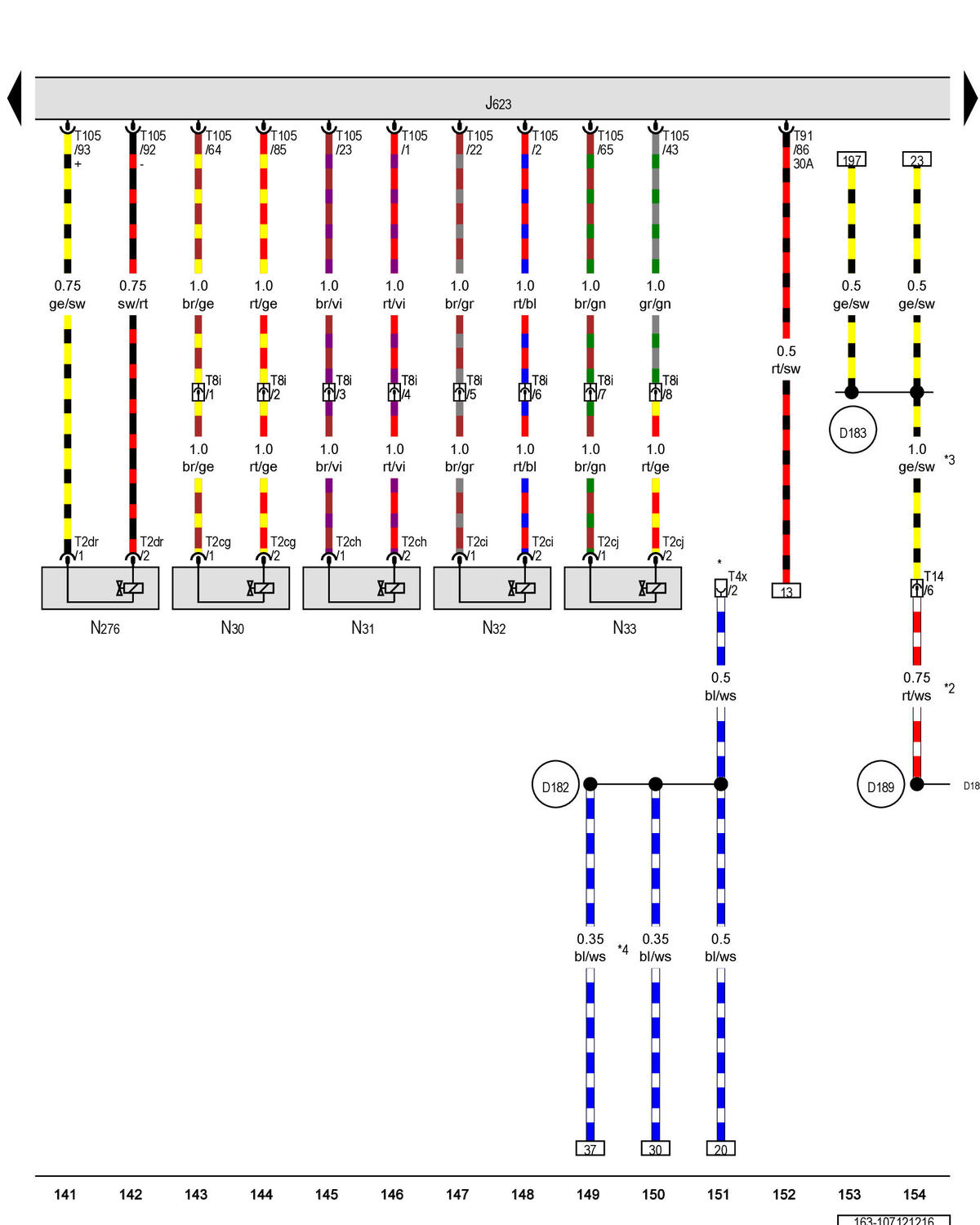

Engine Control Module, Cylinder 1 Fuel Injector, Cylinder 2 Fuel Injector, Cylinder 3 Fuel Injector, Cylinder 4 Fuel Injector, Fuel Pressure Regulator Valve
J623
Engine control module
N30
Cylinder 1 fuel injector
N31
Cylinder 2 fuel injector
N32
Cylinder 3 fuel injector
N33
Cylinder 4 fuel injector
N276
Fuel pressure regulator valve
T2cg
2-pin connector
T2ch
2-pin connector
T2ci
2-pin connector
T2cj
2-pin connector
T2dr
2-pin connector
T4x
4-pin connector
T8i
8-pin connector
T14
14-pin connector
T91
91-pin connector
T105
105-pin connector
Connection 3 (87a) (in engine compartment wiring harness)
Connection 4 (87a) (in engine compartment wiring harness)
Connection 87a (in engine pre-wiring harness)
*Radiator Fan Connection
*2 The Color Of The Wires Depends On Vehicle Equipment
*3 Diameter Depends On Equipment
*4 From December 2016
